Product Details Company Profile

Body size:

650mm (H) * 290mm (W) * 420mm (d)

Base display

Expansion function: can place barreled water, spare raw materials, etc;

Note: the base is optional accessories (please buy separately)

Optional machine accessories

6-to-2 branch line joint under pumping water pump, please buy separately (24 V)

[product technical parameters]

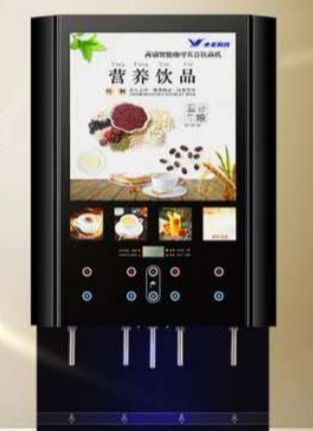

Model 1: three ingredients instant coffee beverage machine 30J 30jw (single heat type)

Voltage: AC220 V / 50 Hz

Power: heating 1600W

Body size: 655mm * 290mm * 420mm (h * w * d) bottom cabinet size: 655mm * 290mm * 420mm (h * w * d)

Net weight: 17.5kg (bottom cabinet 8.5Kg)

Selection menu: coffee, milk tea, juice, hot water and cold water;

Stock of raw materials: 1500g each in 3 drums (instant solid powder)

Storage capacity: 5 L water storage tank, 1.6 L heating tank;

Water supply mode: Top barreled water or external water, bottom pumping optional

Display mode: LED & fnd (Chinese display / English display optional)

Panel display:

Highlight LED light panel display

Detection mode: no cup detection function

Model 2: three ingredients instant coffee beverage machine 30jc 30jcw (ice heated electronic refrigeration)

Voltage: AC220 V / 50 Hz

Power: heating 1600W, cooling 85W

Body size: 655mm * 290mm * 420mm (h * w * d) bottom cabinet size: 655mm * 290mm * 420mm (h * w * d)

Net weight: 23kg (bottom cabinet 8.5Kg)

Selection menu: 1: coffee, milk tea, fruit juice (ice hot drink can be set to convert) hot water, cold water, 5 choices;

2: Hot coffee, hot milk tea, hot juice, iced coffee, Iced Milk Tea, iced juice, hot water, cold water, 8 choices;

Stock of raw materials: 1500g each in 3 drums (instant solid powder)

Storage capacity: 5 L water storage tank, 1.6 L heating tank, 0.8 l refrigeration tank (electronic refrigeration);

Refrigeration mode: single chip semiconductor refrigeration (electronic refrigeration)

Water supply mode: Top barreled water or external water, bottom pumping optional

Display mode: LED & fnd (Chinese display / English display optional)

Panel display: highlight LED light panel display

Detection mode: no cup detection function

Other remarks: the maximum water temperature of beverage can be set to 95 ℃, the minimum water temperature of beverage can be set to 6-15 ℃ (electronic refrigeration), and the number of cups can be counted separately;

Optional machine bottom cabinet, pump, etc;

Applicable place:

Store Exhibition Hall / office space / commercial sale / home use

[product features]

Suitable for a variety of drinks:

It can make any three flavors (coffee, milk tea, fruit C, chocolate, milk, soybean milk, cereal, coarse grain, etc.) at the same time A variety of instant drinks)

It's up to you to choose;

Free choice of cold and hot drinks:

A cup of warm coffee and hot drink can warm your heart;

Hot summer - a cool drink can help you cool down and quench your thirst with just one click;

Drinking water supply in four seasons:

Continuous water supply throughout the year (normal temperature water, hot water, ice water) can turn on the refrigeration function in summer, you can drink cool drinking water without refrigerator!

It is the electrical equipment that the water dispenser upgrades and replaces;

High efficiency electronic refrigeration system:

Using high efficiency electronic chip refrigeration system, less electricity, refrigeration speed, can be suitable for cold water crowd.

Large and small cup setting function:

Customers can set the capacity of large and small cups (100-600ml) according to the needs of use; (including: water and powder)

Hot drink high refill function:

International advanced computer temperature control technology ensures continuous supply of more than 50 cups (300ml) of hot drinks during the peak period of machine use

Beverage taste and water regulation system:

According to different tastes, the taste concentration of coffee drinks can be adjusted freely,

The water output of the machine can also be adjusted freely.

Water temperature free regulation system:

It is equipped with a hot water storage tank, which can adjust the water temperature according to the climate change. (regulation range: 70 ~ 96 ℃)

Large capacity environmentally friendly raw material barrel:

It adopts the health and environmental protection materials which are harmless to human body. The maximum capacity of raw material barrel can reach 1600 g, which avoids the trouble of adding raw materials frequently.

Water shortage automatic display:

When the water storage in the machine is lower than the set value, the machine will give an alarm automatically to avoid the machine failure.

Intelligent child lock function:

Customers can automatically set the children's lock function according to their needs, so as to eliminate the possibility of children being scalded, which is not only safe and hygienic, but also avoids unnecessary waste.

Sales statistics:

The sales quantity of each kind of beverage can be counted to facilitate the management of beverage sales statistics.

Various water inlet modes:

Upper barreled water: the top of the equipment is equipped with a special water inlet seat for barreled water, which can be used when users directly install barreled water;
External water purification pipe: the connection pipe of special water purifier is directly connected with the water purification equipment to supply water to the coffee machine;
Downward pumping mode: the downward pumping mode is adopted to supply water to the machine, which is not only beautiful, but also convenient and practical;

exhaust and moisture-proof heating system:

The machine is equipped with automatic exhaust and moisture-proof heating system, which can keep the air inside the machine dry and fresh for a long time, and ensure that the raw materials do not solidify,

It is equipped with filter design to prevent mosquitoes from entering the exhaust pipe.

One button automatic cleaning system:

Daily automatic cleaning, to ensure that the coffee machine hygiene, simple and convenient, easy to operate, the machine in the process of use; if there are internal accidents

The system can solve the problem easily.

High speed rotary mixing system:

Through the high-speed rotating mixing system of the machine, the material and water can be fully mixed, so that the foam of the beverage is more delicate and the taste is more pure.

Fault self diagnosis system:

When there is a problem in the circuit part of the machine, the system will display the fault code on the display of the machine, and the machine will automatically lock,

In order to repair personnel troubleshooting, ensure machine and personal safety.

Display of LED light board:

High brightness LED lighting, can fully display the image of the customer brand, highlight the brand personality!

It is more likely to attract consumers to buy drinks at night or in dim light.

Touch button design:

Intelligent high-tech touch button design, choose to use more user-friendly and sense of science and technology;

Intelligent cup detection design:

Intelligent, humanized and scientific design, to prevent the production of drinks without drink cups. Invisible design,

More scientific and reasonable
